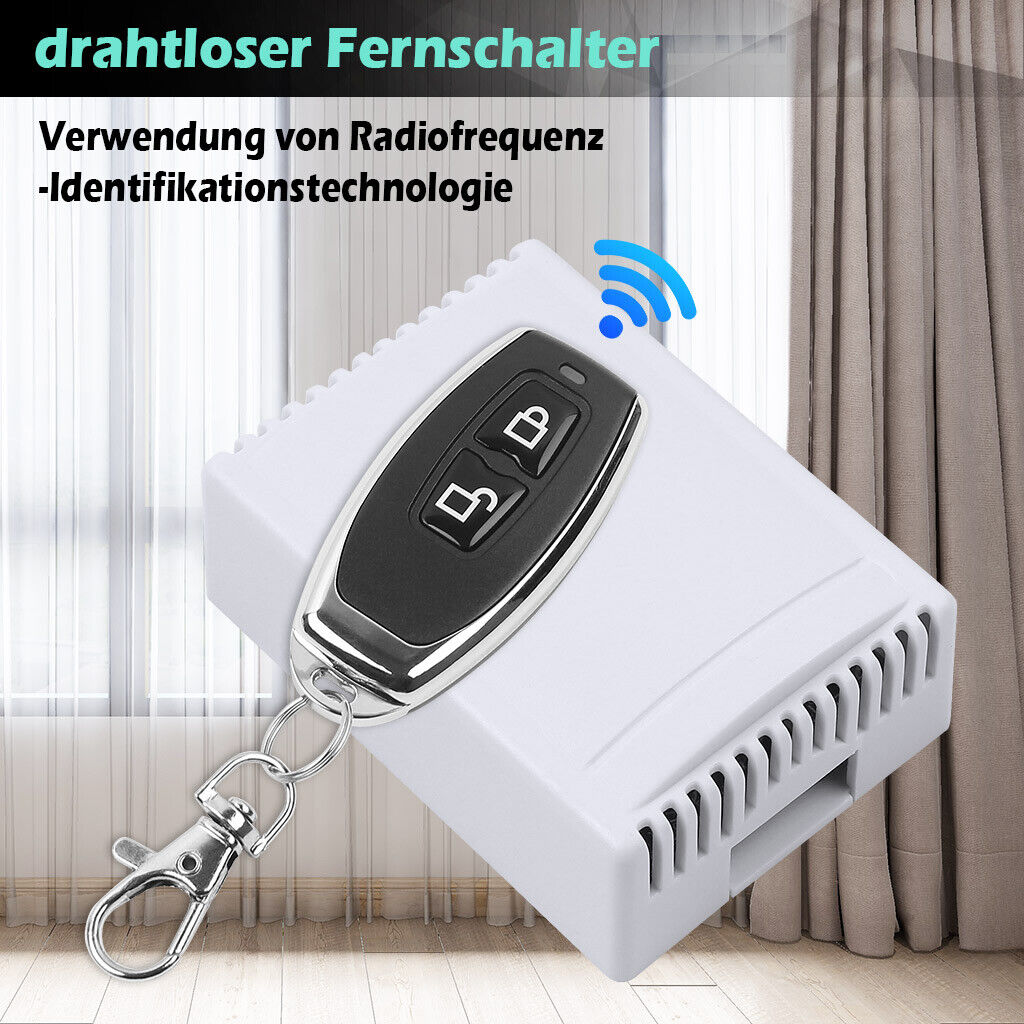

Garage Door Remote Control Relay Wireless Transmitter Receiver Kit 2 CH

Features:

Instructions:

Jog mode: Press the remote control relay to close and release the remote control relay to disconnect.

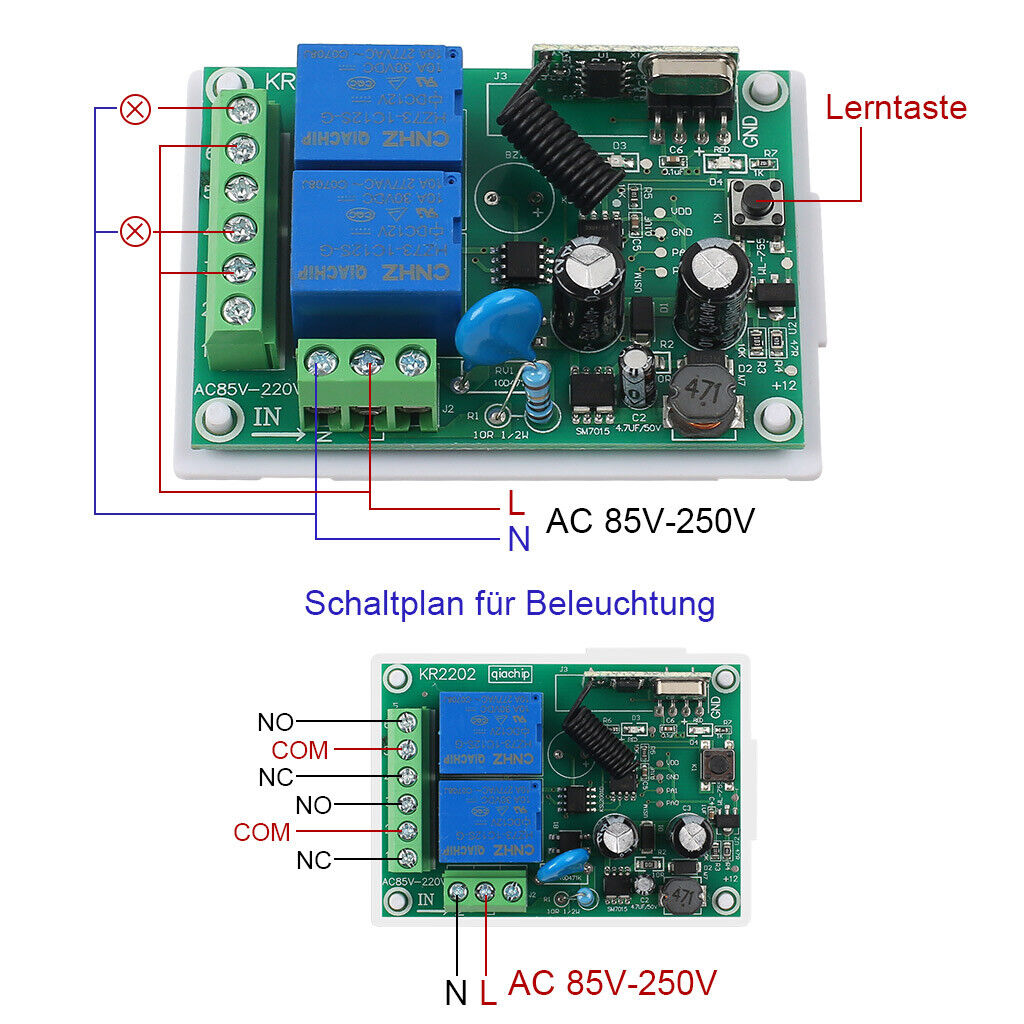

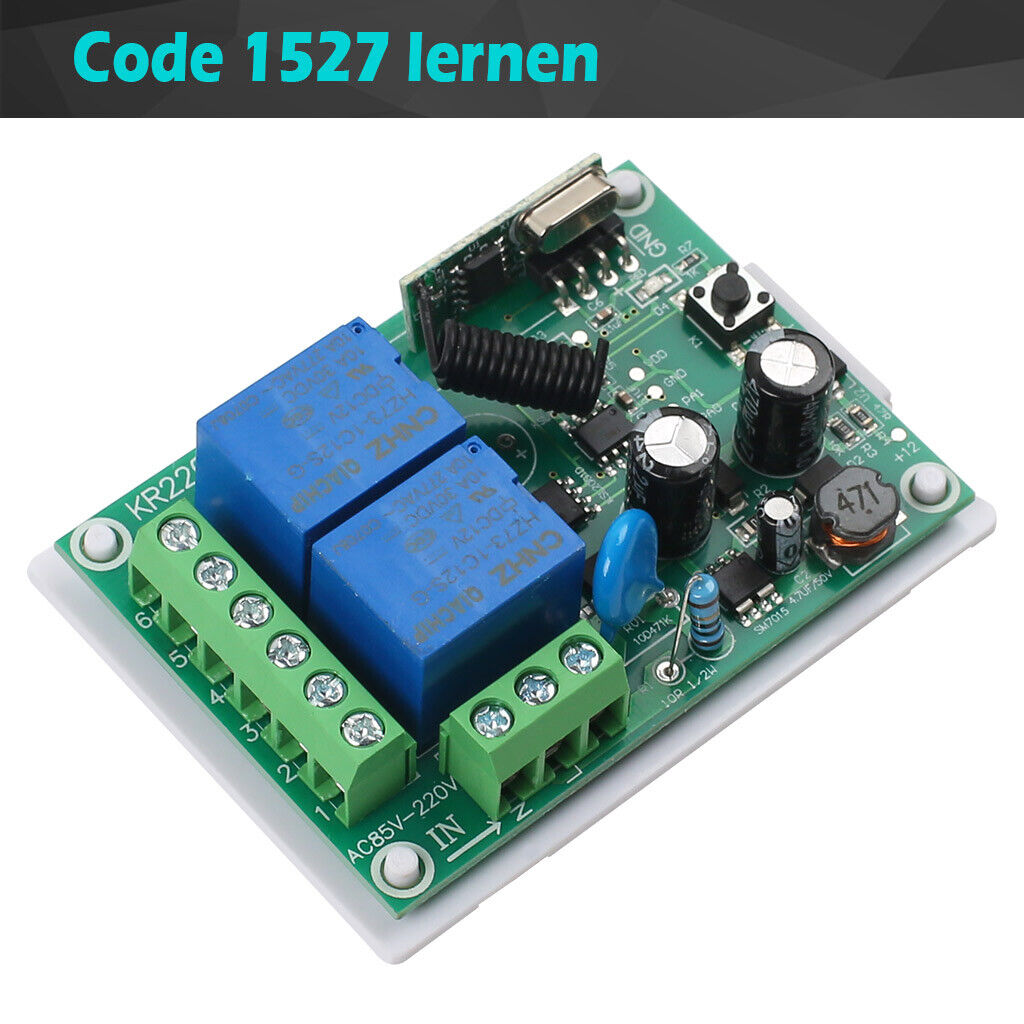

Jog learning method: press the learning button once, the LED indicator flashes quickly 3 times and then goes out, enter the learning state, press any button of the remote control, the LED indicator flashes quickly 3 times and then goes out, then press the remote control button 2, the LED indicator flashes 3 times and then lights up continuously, indicating that the code is successful. (PS. Because it is 2 roads, you need to learn 2 buttons)

Self-locking mode: Press the remote control relay to pull in, and press the remote control again to disconnect the relay.

Self-locking learning method: press the code button twice in succession, the LED indicator flashes quickly 3 times and then goes out, enters the learning state, press any button of the remote control, the LED indicator flashes 3 times and then goes out, then press the remote control. Button 2, the LED indicator flashes 3 times and then lights up continuously, indicating that the code is successful.

Interlocking learning method: press the code button 3 times in succession, the LED indicator flashes quickly 3 times and then goes out, enters the learning state, press any button of the remote control, the LED indicator flashes 3 times and then goes out, then press the remote control. Button 2, the LED indicator flashes 3 times and then lights up continuously, indicating that the code is successful.

Clearing function: Press the code button 8 times in succession. After the LED indicator flashes 4 times and then it is always on, the clear code is completed, and all the remote control key codes that have been learned before are cleared.

Specification:

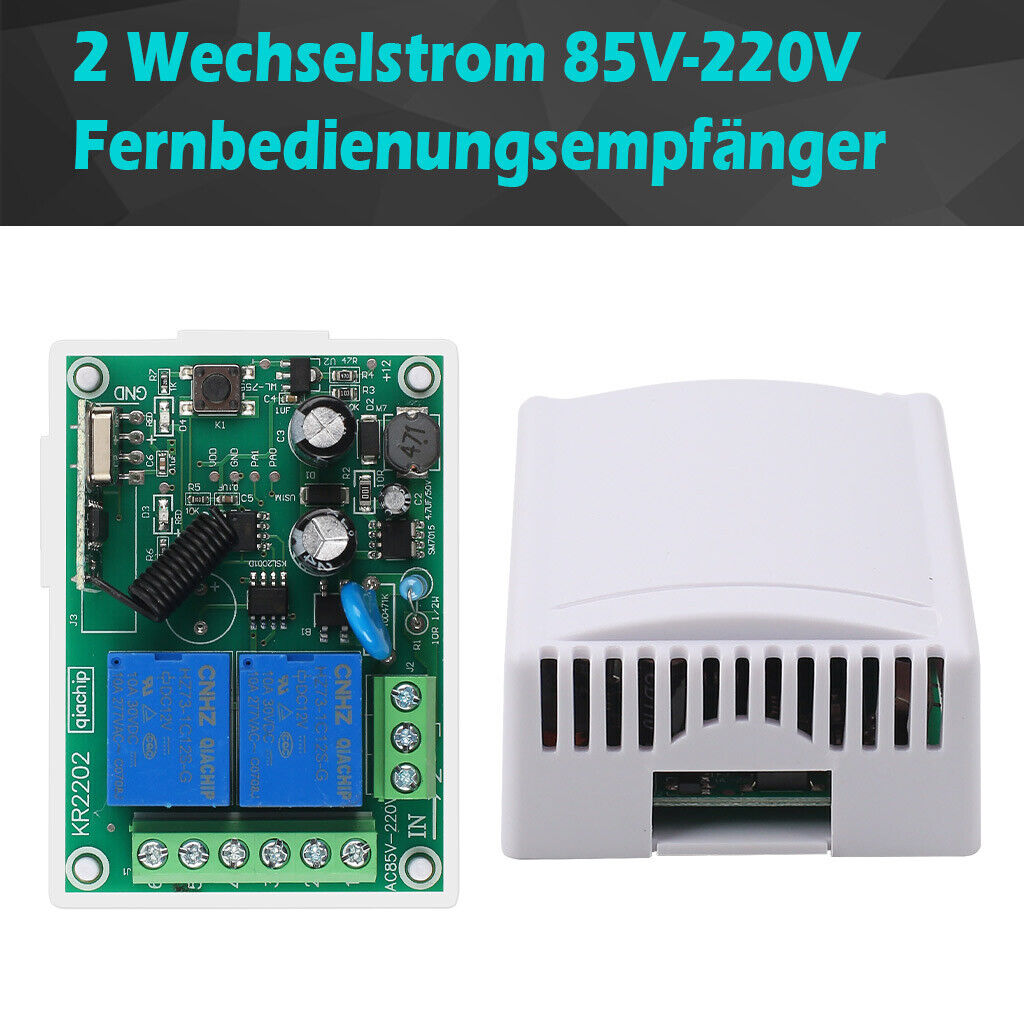

1, working voltage: AC85-250V

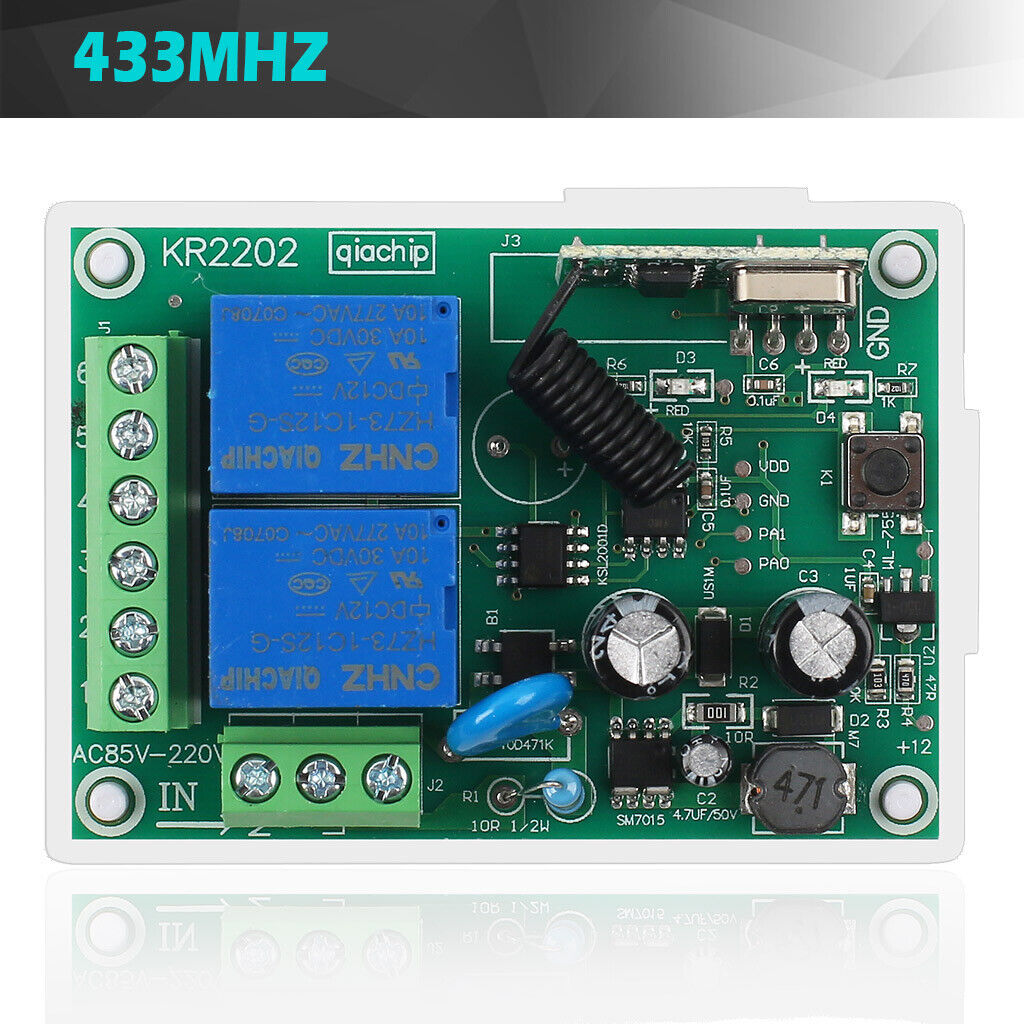

2, working frequency: 433.92MHZ

3, quiescent current: 8.5mA

4, load power: 2200W

5, receiving sensitivity: -105dBM

6, working mode: jog, self-locking, interlock

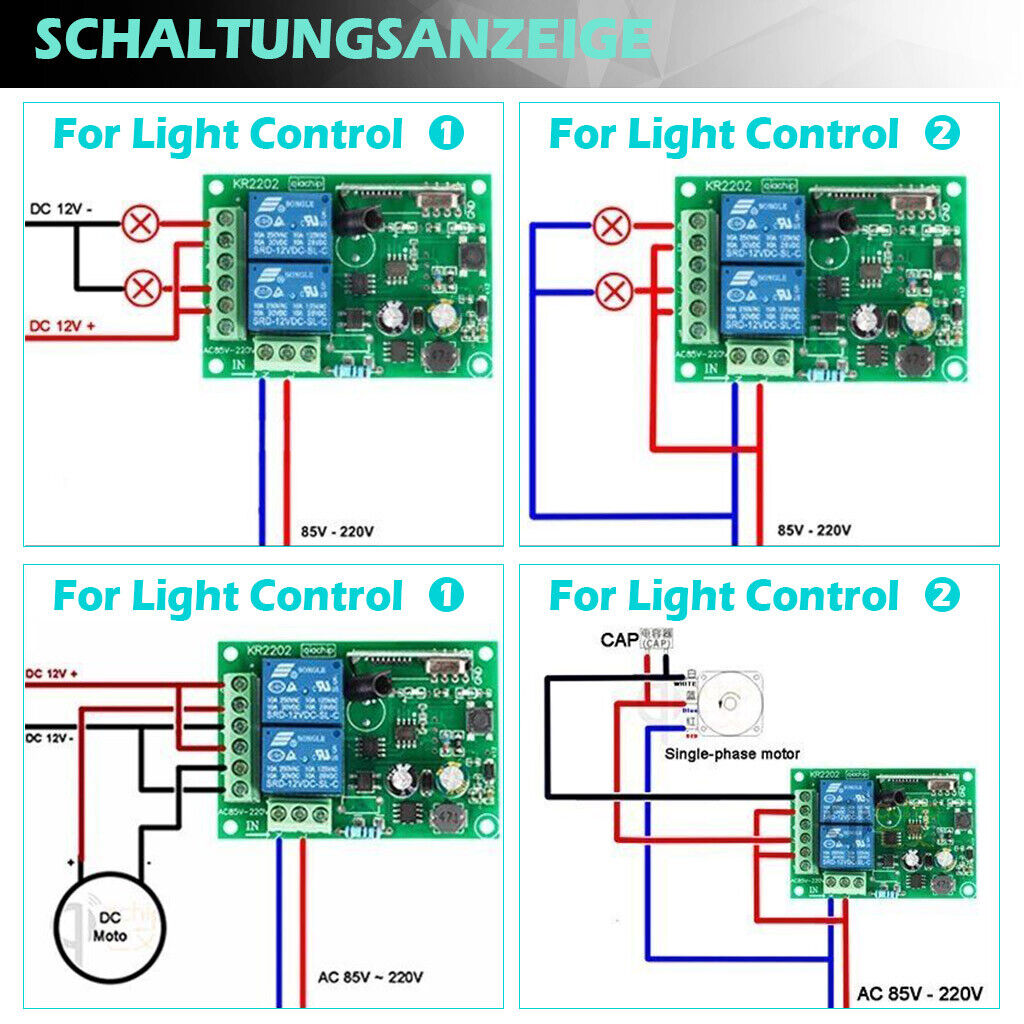

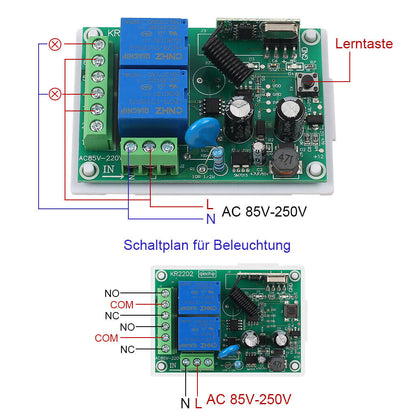

7, output signal: can output 2 way switch signal or 2 way AC220V voltage signal

8, coding method: learning code

9, modulation method: ASK

10, working temperature: -10 ° C ~ +70 ° C

11,Remote control distance: 100 meters

12,Total load power: 1100W per way

Package:

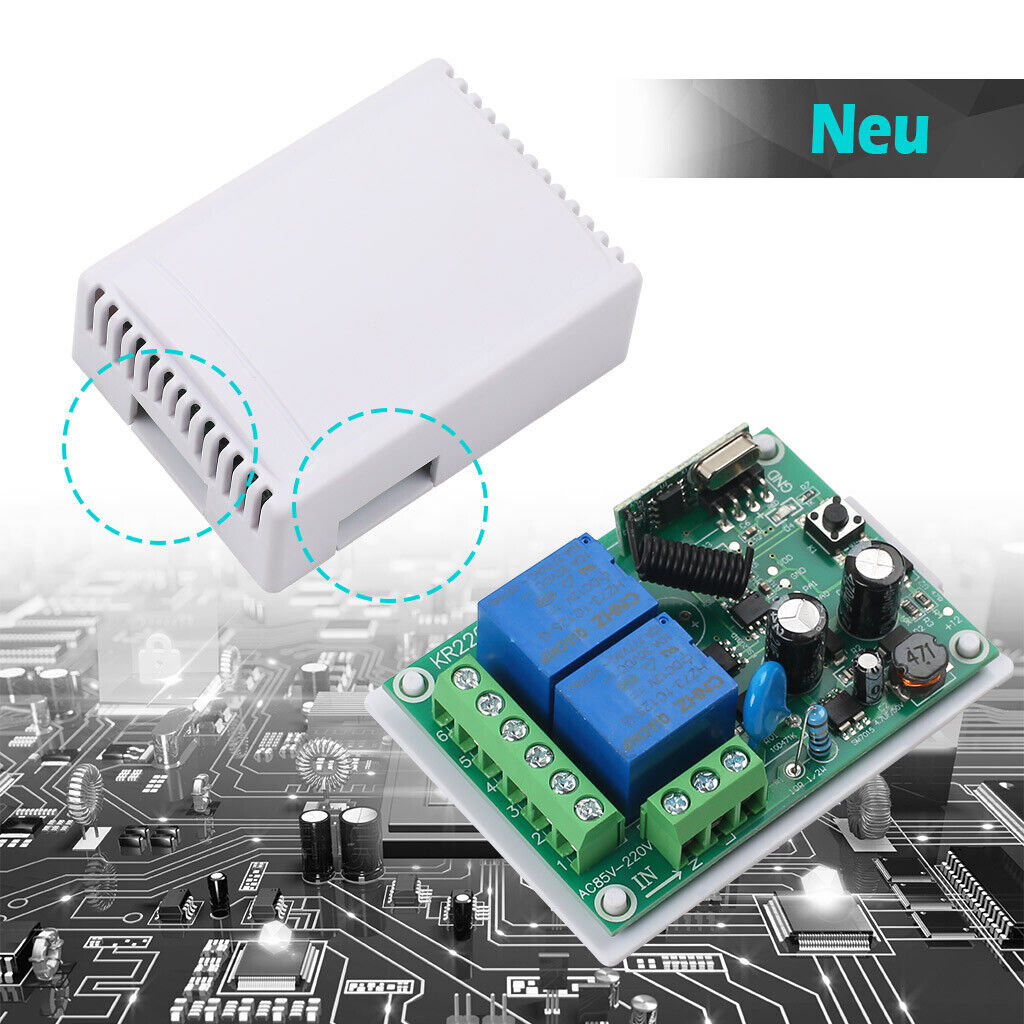

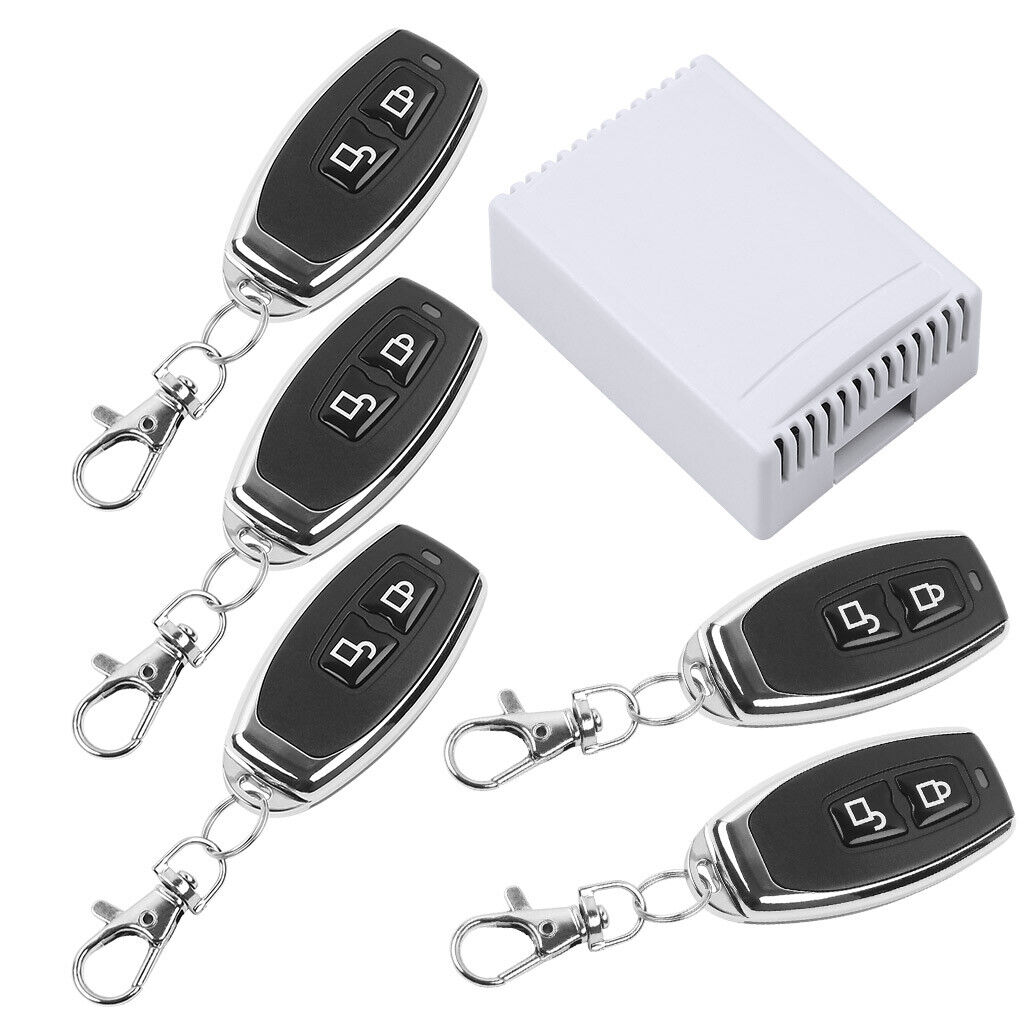

1 x Receiver with shell

5 x Remote Controllers
